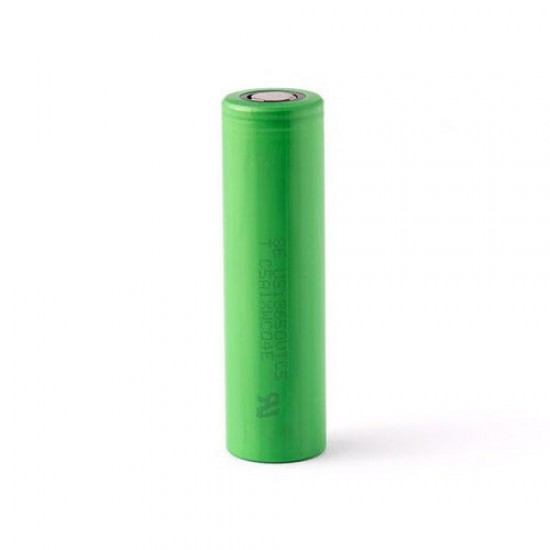

Sony VTC5A 18650 2500mAh 25A 3.6V Battery Flat top

0 reviews|Write a review

$8.19
Ex Tax: $8.19

Product Code: M00000852
Availability: In Stock

100% GUARANTEED ORIGINAL CELL. WE DO NOT SELL CLONE BATTERIES, ALL SOURCED FROM VERIFIED DISTRIBUTORS.Specifications:Model: US18650VTC5ATypical capacity: 2500mAhFull Charge Voltage: 4.2VNominal Voltage: 3.6Operating Temperature (Cell Surface Temperature):Operating temperature: Charging 0°C ~45°C, discharging: -20°C ~ 60°CStorage temperature: -5°C ~ 35°CPlease properly dispose of battery if it gets..

Qty:

Description
Reviews (0)

100% GUARANTEED ORIGINAL CELL. WE DO NOT SELL CLONE BATTERIES, ALL SOURCED FROM VERIFIED DISTRIBUTORS.

Specifications:

Model: US18650VTC5A
Typical capacity: 2500mAh
Full Charge Voltage: 4.2V
Nominal Voltage: 3.6

Operating Temperature (Cell Surface Temperature):

Operating temperature: Charging 0°C ~45°C, discharging: -20°C ~ 60°C
Storage temperature: -5°C ~ 35°C
Please properly dispose of battery if it gets too hot

Charging:

Standard charge: CC/CV, 0.2C, 4.2V
Standard discharge: CC, 0.2C, 2.5V
End-of-charge voltage: 4.2V +/-0.05V
End-of-charge current: 0.02C (About 62mA)
End-of-discharge voltage: 2.00V
Continuous maximum discharge: 5C/10C (15A/30A) with temp cutoff at 80°C
Max. discharge current vs. time: 30A-40A > 44s, 55A > 19s, 80A > 6s (Never discharge above 80°C)
Do NOT charge unattended
Do NOT leave unattended after fully charging

Size:

18650
Exact Dimensions: [H] 65.20 mm [D] 18.50 mm (+/- 0.3 mm)
Weight: 47g
Positive terminal: Flat Top
External Electronic Protection: No (unprotected)

Safety Notes:

Do NOT short.
Do NOT leave unattended when charging.
Do NOT leave unattended immediately AFTER charging.
Do NOT carry in your pocket or purse unless they are in a secure non-conductive carry case.
They are not toys. Do not let your children or pets play with them.
Do NOT recharge with cheap chargers that keep on trickle charging after the normal cycle or that do not follow the Constant Current / Constant Voltage (CC/CV) algorithm properly. If you have any doubt about the suitability of your current charger to properly charge these batteries, please ASK us first !
